Gerber files for the FRDM-17533EV-EVB-GRBR Evaluation board

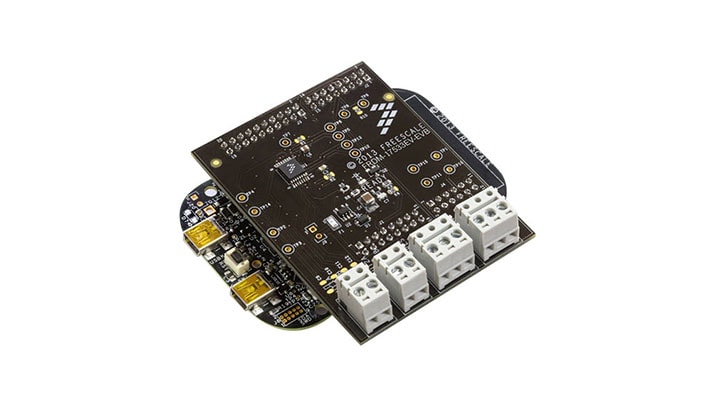

Freedom Expansion Board for MPC17533 Dual H-Bridge, Stepper Motor Driver
FRDM-17533EV-EVB アラートの受信
This Freedom evaluation board supports the MPC17533 two-channel, H-Bridge driver for either a single stepper motor or two brushed DC motors. It provides a small, low-power, cost-effective evaluation and development system for quick application prototyping and demonstration of Kinetis® MCU families.
- Offers an easy-to-use mass-storage device mode flash programmer, virtual serial port and classic programming and run-control capabilities.
- Includes built-in shoot through current protection and undervoltage detector to avoid malfunction
- Saves cost and space that would otherwise be used implementing a charge pump
- Efficiently drives many types of micromotors with low power dissipation
- Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development.
製品詳細
Features
General Specifications
- Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)
Connectivity
- Screw terminals for motor leads and power connections
Power Management
- Fuse protected
- Built in regulator for logic power supply
- Board power is separate from host CPU power
- VG terminal for gate drive voltage
User Components
- General-purpose LED driven from FRDM-KL25Z
Upgrade your FRDM-17533EV-EVB
購入オプション
-
FRDM-17533EV-EVB
-
Freedom Evaluation board -MPC17533, H-Be, Dual, Low Voltage, Stepper&DC Brushed Motor Driver.
- FRDM-17533EV-EVB hardware
- Connectors for FRDM attach boards
- Quick Reference Guide
