S32R274 End-to-End Reference Design Kit

RDK-S32R274

画像にカーソルを合わせると拡大表示されます。

The RDK-S32R274 is an open and flexible reference design engineered for supporting developers to rapidly prototype high-performance automotive-grade radar applications.

Developed in partnership with Colorado Engineering Inc. and based on the 32-bit Power Architecture® S32R274 radar microcontroller, the fully-integrated TEF8102 RFCMOS transceiver, and the FS8410 Power Management IC, the RDK-S32R274 helps to enable both adaptive cruise control (ACC) and automatic emergency braking (AEB) new car assessment program (NCAP) up to ISO 26262 ASIL B applications.

The RDK-S32R274 works with the end-to-end automotive-qualified radar software development kit (rSDK). Also, its expansion and antenna modules can be optimized to create a customized development platform suited to specific customer radar application requirements.

RDK-S32R274 Automotive Radar Reference Platform - Fact Sheet

製品詳細

セクションを選択:

ブロック図

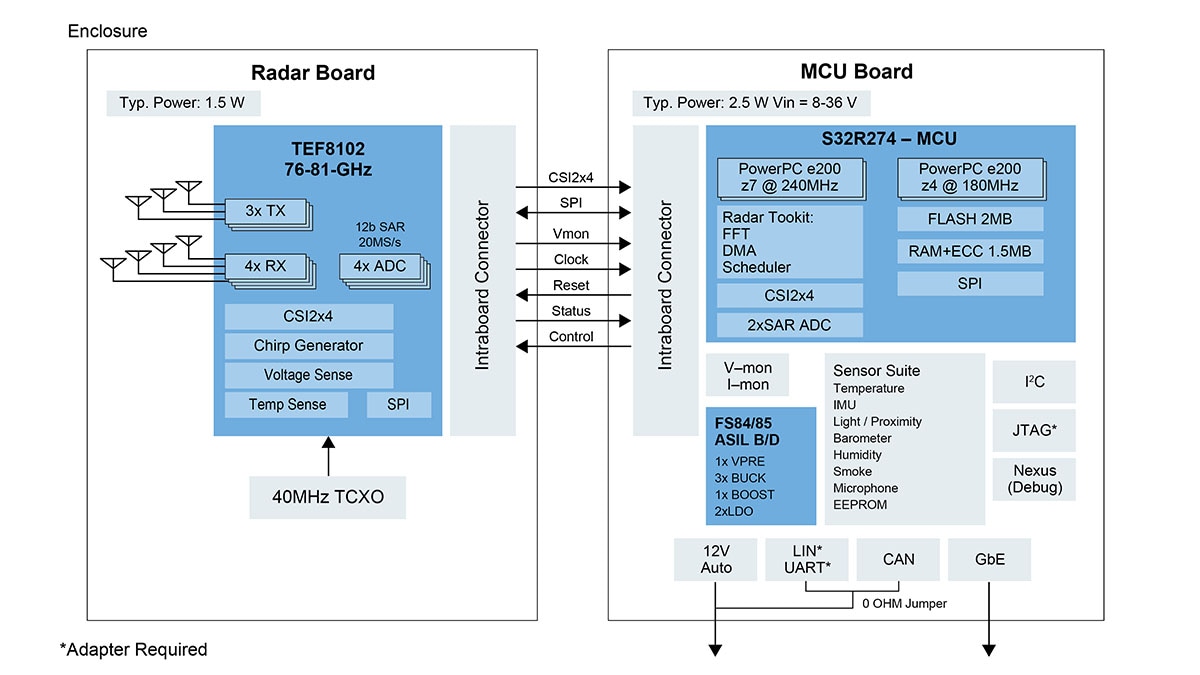

S32R274 end-to-end Reference Design Kit - Block Diagram

S32R274 End-to-End Reference Design Kit, Engineered for High-Performance Automotive Radar - Block Diagram
図を取得する PDF

対応製品

RF

Radar Transceivers

  • TEF810X: TEF810x Fully-Integrated 77 GHz Radar Transceiver

パワーマネージメント

安全SBC

  • FS8400: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
  • FS8500: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL D

プロセッサ＆マイクロコントローラ

S32RレーダーMCU

  • S32R2X: 高性能レーダーに対応するS32R26およびS32R27マイクロコントローラ

Features

Technical and Functional Specifications

  • Leverages market leading performance/watt radar processor
  • Automotive-grade end-to-end reference design, following automotive hardware design methodologies
  • Full-design platform enabling engineers to optimize up to ISO 26262 ASIL B applications
  • Enables NCAP applications: ACC or AEB
  • Helps to rapidly reduce time-to-market
  • Features the automotive-grade NXP radar software development kit (rSDK)

購入オプション

  • RDK-S32R274

  • S32R274 Reference Design for high-performance radar.

  • Kit contains:

    • Hardware reference design kit: RDK w/enclosure, GUI, quick start guide, power cable, ethernet cable
    • Radar application software-demo based on NXP rSDK pre-flashed with source code available (non-safe)
    • Bill of Materials (BOM)
    • Schematics (PDF)

  • RDK-S32R274-PR

  • Premium reference design package for the RDK-S32R274.

  • Kit contains:

    • Hardware reference design kit: RDK w/enclosure, GUI, Quick Start Guide, power cable, ethernet cable
    • Radar application software-demo based on NXP rSDK pre-flashed with source code available (non-safe)
    • Application software
    • Bill of Materials (BOM)
    • Schematics layout with Gerber files
    • Up to 20 hours of technical support with NXP and CEI
