KEA128LEDLIGHTRD
-
KEA128 and MC10XS3425 Light Control and E-switch reference design..
Kit contains:

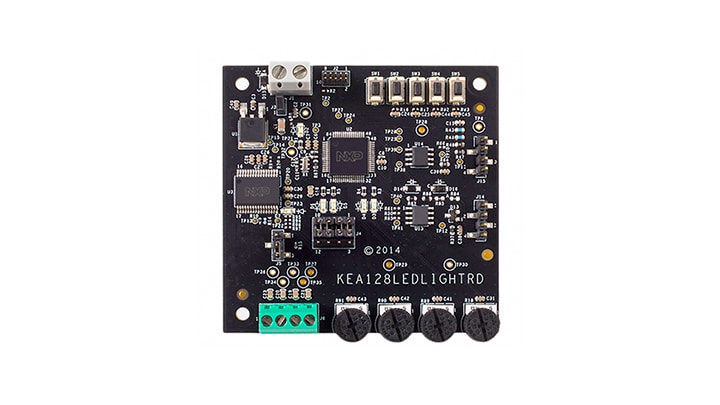

- KEA128LEDLIGHTRD reference design board
- KEA128LEDLIGHTRD Quick Start Guide
- 設計
- KEA128 and MC10XS3425 Light Control and E-Switch Reference Design
KEA128 and MC10XS3425 Light Control and E-Switch Reference Design
KEA128LEDLIGHTRD アラートの受信
The KEA128LEDLIGHTRD is a reference design for controlling automotive lighting (high/low beam, turning and braking) and for diagnosing the status of the front headlamp using with eXtreme switch.

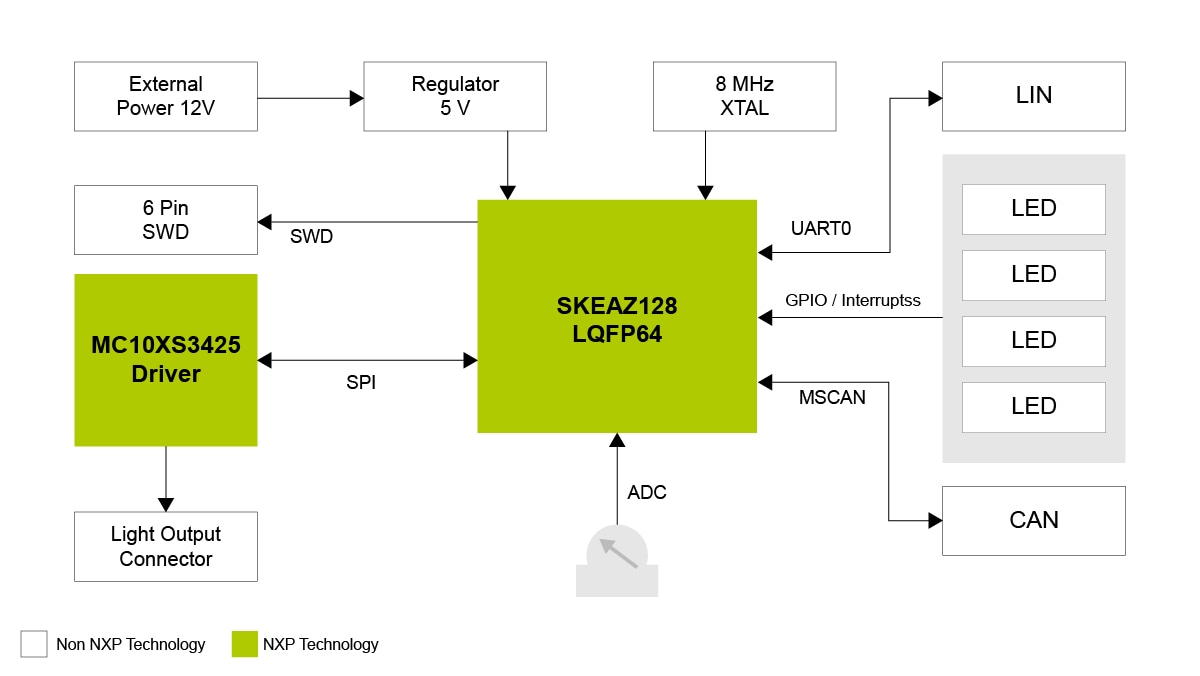

Based on the 32-bit Arm® Cortex®-M0+ Kinetis® KEA128 automotive-grade MCU and the MC10XS3425 eXtreme switch, the KEA128LEDLIGHTRD offers a LIN and CAN communication-based complete headlight environment control solution, including LEDs, tail lights, turn signals, lamp current control and diagnostics.
製品詳細
Features
- Light level control and bulb status
- Serial peripheral interface (SPI) communication throughout the system
- Light connector interface increases the number of controlled lights
- SWD connector interface for debugging
- 4 x LEDs
- 4 x potentiometers
購入オプション
ドキュメンテーション
クイック・リファレンス ドキュメンテーションの種類.
設計・リソース
ソフトウェア
2 ソフトウェア・ファイル
-
特定用途
KEA128LEDLIGHTRD Application Software Package
