- Industrial Drive Platform
i.MX RT Industrial Drive Development Platform
I.MX-RT-INDUSTRIAL-DRIVE-DEV-PLATFORM アラートの受信
- 製造開始前
- このページでは、試作品の情報を掲載しています。ここに記載されている仕様や情報は、予告なく変更されることがあります。追加情報については、 または営業担当者にお問い合わせください。

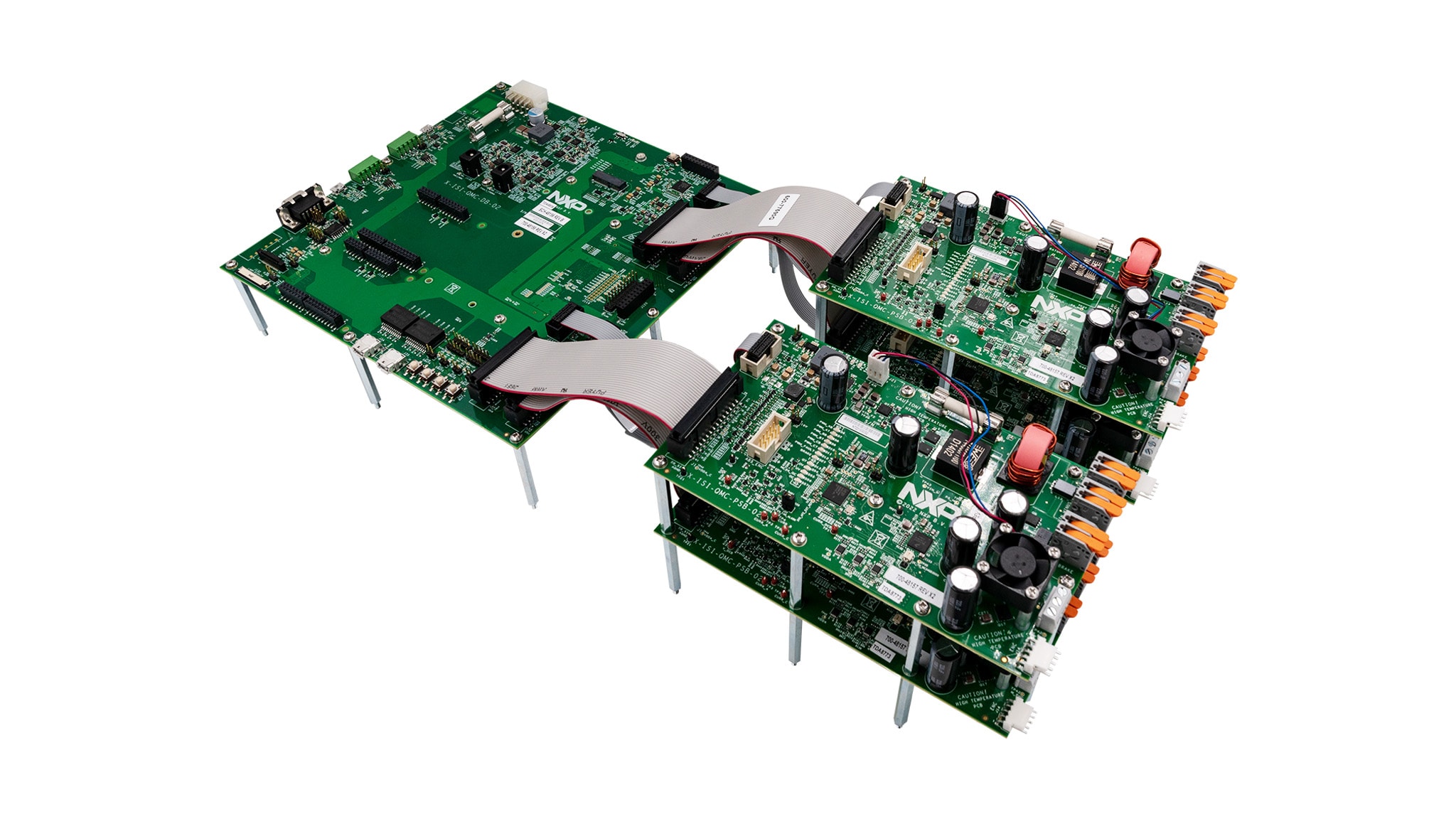

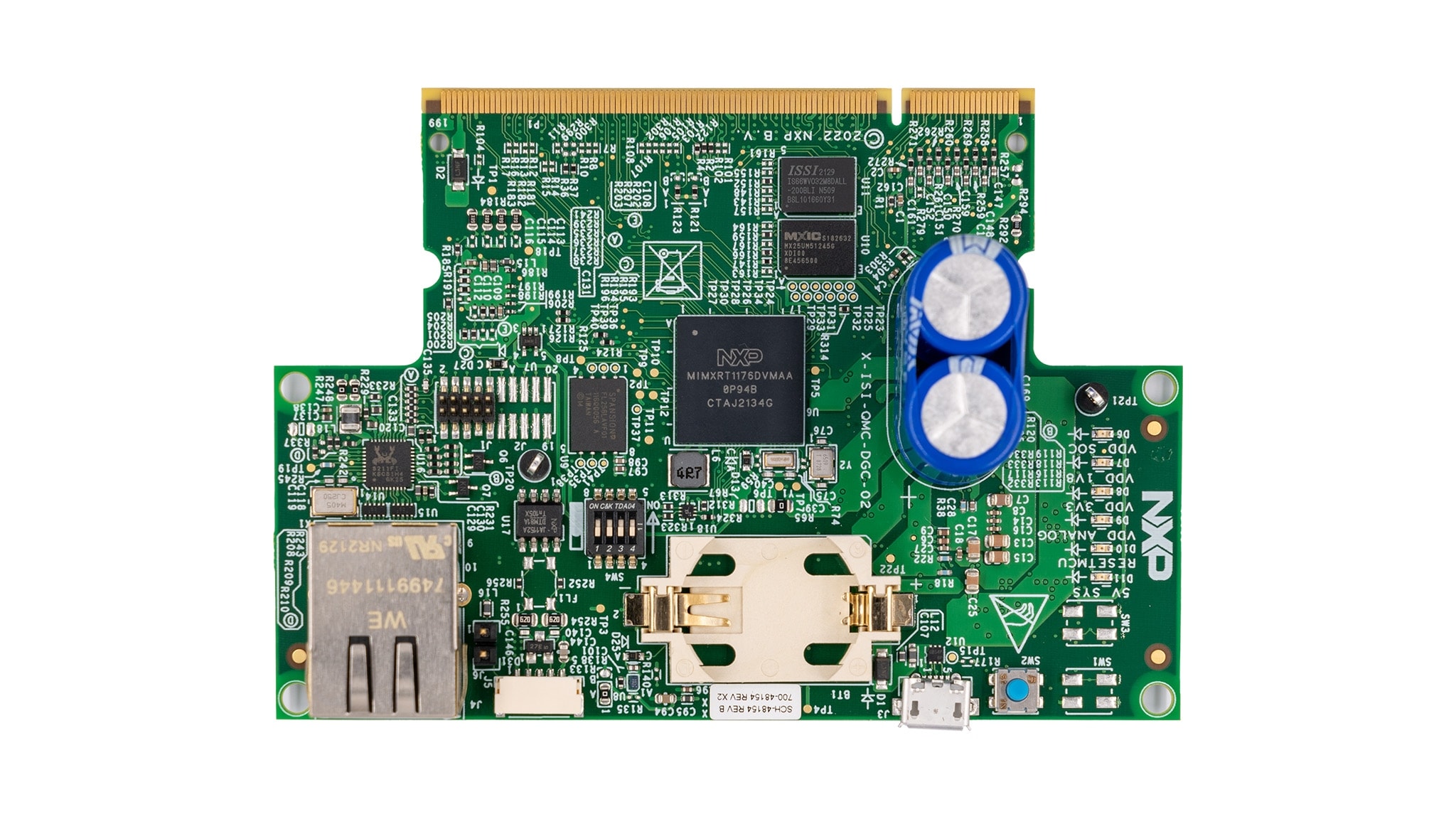

The Industrial Drive Development Platform shows how a single i.MX RT1176 Crossover MCU can control up to four different motors while managing wired or wireless connectivity and an HMI interface. Leverage this flexible three-board kit to evaluate motor control performance, speed up motor control designs based on the i.MX RT Crossover MCUs and learn to use NXP EdgeLock® security technology to enable safer communications and industrial control.
製品詳細

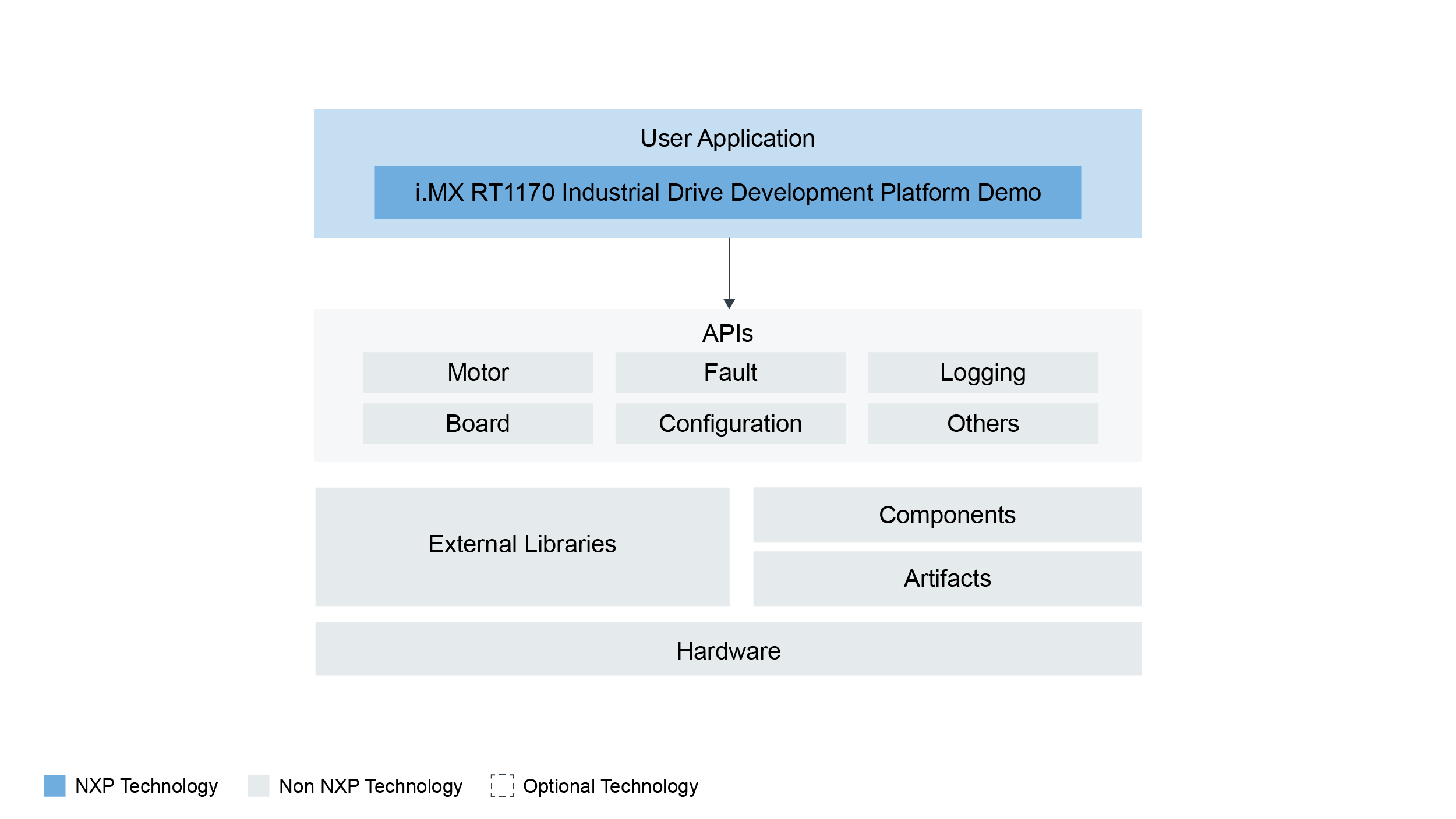

ブロック図
対応製品
センサ
I2Cデジタル温度センサ
- PCT2075: I2C-Bus Fm+, 1 Degree C Accuracy, Digital Temperature Sensor And Thermal Watchdog
インターフェース
セキュアCANトランシーバ
- TJA1152: Secure HS-CAN Transceiver with Standby Mode
CANシグナルの改善
- TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode
セキュリティ＆認証
認証
- SE050: EdgeLock® SE050：Plug & Trustセキュア・エレメント・ファミリ – 柔軟性に優れた、IoT向けの高度なセキュリティ
パワーマネージメント
BLDC、Hブリッジ、ステッパー
- GD3000: 3-Phase Brushless Motor Pre-Driver
PMIC
- PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level
プロセッサ＆マイクロコントローラ
i.MX RTクロスオーバーMCU
- i.MX-RT1170: i.MX RT1170 First GHz Crossover MCU with Arm® Cortex®-M7 and Cortex-M4 Cores
RFID
NFC Readers
- PN7462: NFC Cortex®-M0 All-in-One Microcontroller with Optional Contact Interface for Access Control
ペリフェラル＆ロジック
アナログ・フロントエンド
- NAFEx1388: Highly Configurable 8 Channel ±25 V Universal Input Low Power Analog Front-End
Features
MCU
- 6468 CoreMark with Cortex-M7 up to 800 MHz + Arm Cortex-M4 up to 400 MHz
- 2 MB SRAM with 512 KB of TCM for Cortex-M7 and 256 KB of TCM for Cortex-M4
- Advanced security, including secure boot and crypto engines, and is part of the EdgeLock® Assurance program
- 1 Gb ENET with TSN
- MIPI® DSI
- Supported by MCUXpresso suite of software and tools
Tools
- Supported by FreeMASTER, MCUXPresso SDK, IDE and configuration tools
- Integrated motor control subsystem with high speed ADCs and Comparators, flexible multi-channel PWM outputs, Quadrature encoders/decoders, etc
Support Package
- Schematics, layout, Gerbers, BOM, sample source code, user guide and video tutorial
Power Management
- Highly flexible motor control; up to 4 motors can be controlled simultaneously
- The NAFE 13388 provides a flexible interface and has over-voltage protection up
- It can accurately read DC bus voltage, DC bus current and board temperature
- The GD3000 interfaces to a MCU via six direct input control signals, a SPI port for device setup and asynchronous reset, enable and interrupt signals
Security
- Provides meaningful guidance and collateral to ease the IEC 62443-4-2 certification journey with NXP products
- Ciphers and RNG, secure RTC, fuse and HAB
- EdgeLock SE05X is Common Criteria EAL 6+ certified up to OS level as a safe environment to run preinstalled NXP IoT applets, supporting comprehensive encrypted communications and secured lifecycle management
Flexible Interface
- USB, CAN, RS485, NFC compatible, Ethernet. Connector with expansion options for WiFi or Bluetooth
